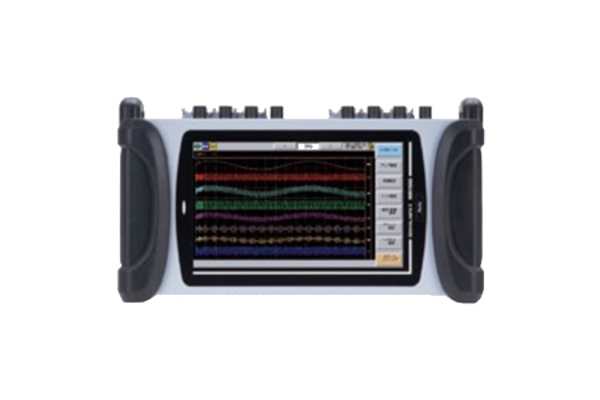

Compact RM1100 Portable Data Recorder provides reliable data collection in challenging environments. A large 7-inch wide TFT LCD color touch screen display and refined GUI are ideal for quick Setup, Data Capture, and Playback. Coupled with “Real-Time”, “Memory” and SD Card recording modes plus up to 1µsec sampling rate, the RM1100 handles the most demanding high-speed applications.

Features

  • Shock and drop resistance withstanding continuous vibration environments such as on-board vehicle tests (MIL-STD-810E 514.5C-1)
  • Wide operating temperatures: – 20℃ to +60℃ (-4°F to +140°F)
  • Compact & rugged case endures dusty and humid environments
  • Three measuring modes: “Real-Time” (Paper), “Memory” (Snapshot), and “Filing” (SD card storage)
  • High-speed recording up to 1µs (1MS/s) to Memory or SD card
  • Long term recording to SD Card, PC, or optional thermal printer
  • 4 or 8-ch Voltage & Temperature & 4 or 8-point Logic signals
  • Long term continuous operation with rechargeable batteries
  • Can also be powered with 12 ~ 24V DC (vehicle) as well as AC
  • Lightweight (approx.1.5kg/ 3.3lbs) with full feature measurement capability
